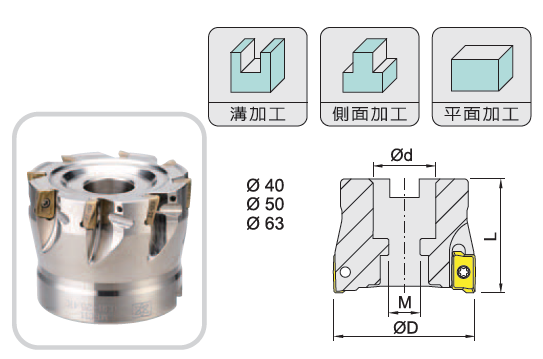

MEC Shoulder / Cutting End Mills

MEC Shoulder / Cutting End Mills

Add Inquiry
Product Specification

Metric specifications

Item code Dimensions,mm Teeth Insert Screw Wrench Weight
KG
D d L M Screw Wrench
MEC11-406-16.0 40 16.0 40 9 6 BDMT11T3.. MS2506A ETF09 0.25
MEC11-507-22.0 50 22.0 40 11 7 0.38
MEC11-638-27.0 63 27.0 50 13 8 0.79



Inch specifications

Item code Dimensions,mm Teeth Insert Screw Wrench Weight
KG
D d L M Screw Wrench
MEC11-507-25.4 50 25.4 50 13 7 BDMT11T3.. MS2506A ETF09 0.46
MEC11-638-25.4 63 25.4 50 13 8 0.82



被切削材
Workpiece material		 Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層
PR1225 PR1210 A B S Re
BDMT11T302ERJT   11 6.7 3.8 0.2
BDMT11T304ERJT   0.4
BDMT11T308ERJT   0.8
BDMT11T304ERJS 0.4
