BXD Shoulder Mill / Cutting End Mills

BXD Shoulder / Cutting End Mills

Add Inquiry
Item code Dimensions, mm Teeth Insert Spare parts Weight
KG

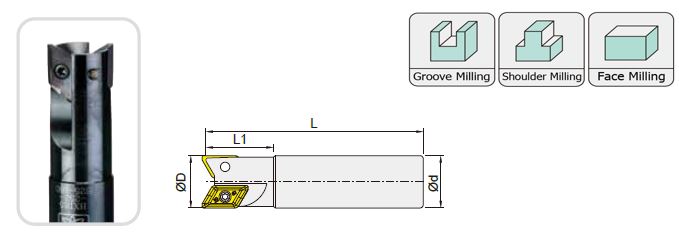

無水孔Non-coolant 水孔Coolant D d L L1
BXD15-252-S25-125   25 25 125 50 2 XDGT1550PD..  0.48
BXD15-252-S25-160 BXD15-252-A25-160 25 25 160 50 2 0.62
BXD15-252-S25-200 BXD15-252-A25-200 25 25 200 50 2 0.77
BXD15-322-S32-150   32 32 150 50 2 0.95
BXD15-322-S32-200   32 32 200 50 2 1.26
BXD15-322-S32-250   32 32 250 50 2 1.58
BXD15-403-S32-200   40 32 200 50 3 1.27



Insert Spare parts Screw Wrench

XDGT1550PD.. MS4008A ETF15
XDGT1550PD.. MS4009A ETF15
XDGT1550PD.. MS4011A ETF15



被切削材
Workpiece material
Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層 Cemented Carbide 硬質合金
NW948 NM413 A B F Re
Insert Shape XDGT1550PDER-G04
  22 16 1.5 0.4
XDGT1550PDER-G08
  22 16 1.1 0.8
XDGT1550PDER-G12     22 16 0.7 1.2
XDGT1550PDER-G16     22 16 0.4 1.6
XDGT1550PDER-G20     21.7 16 0.2 2.0
XDGT1550PDER-G30   20 16 0.6 3.0
XDGT1550PDFR-GL04   22 16 1.5 0.4
